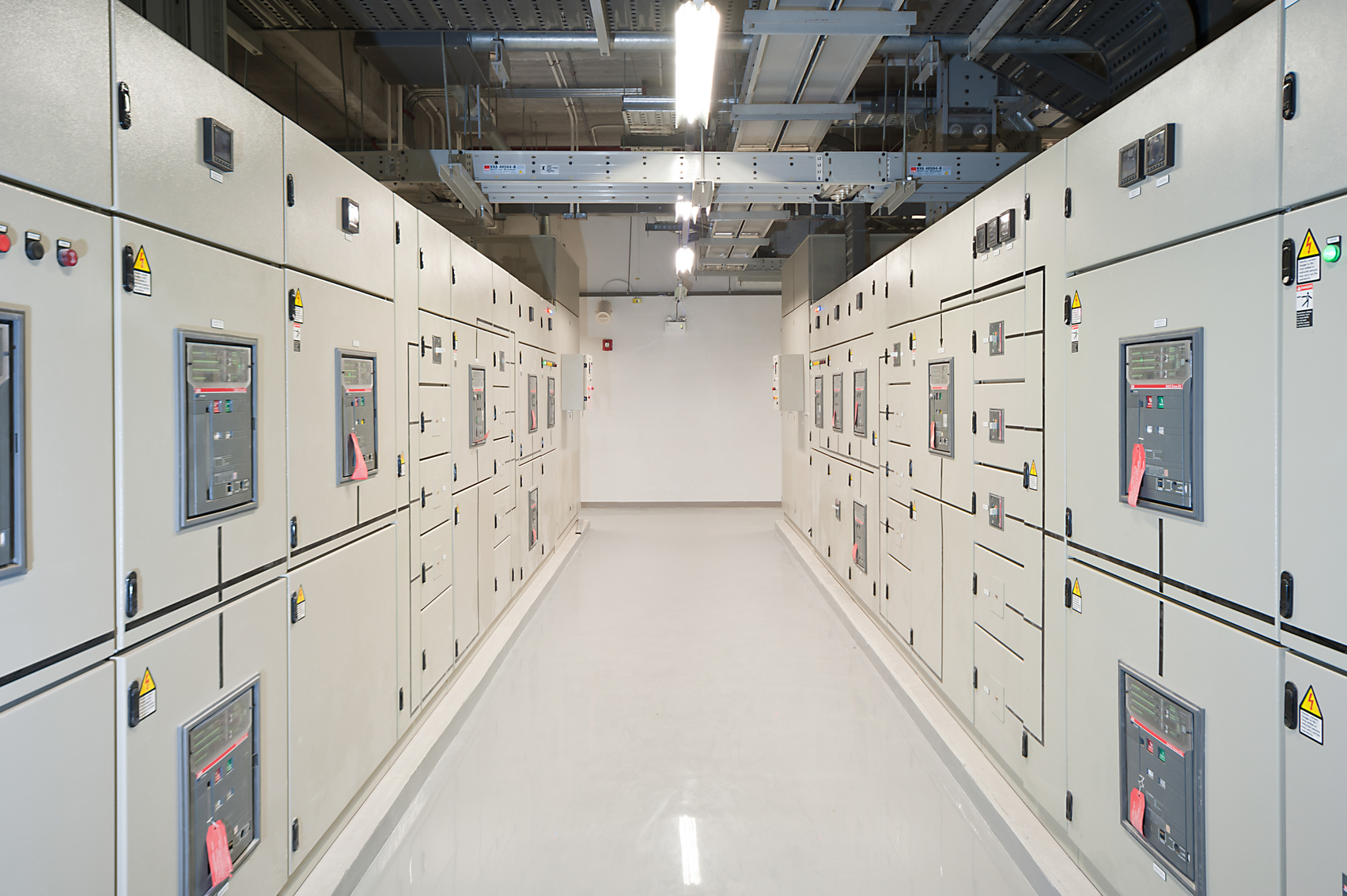

Maintenance engineer testing voltage switchgear and bay control unit

Wireless

Switchgear

Temperature

Monitoring

Temperature monitoring is KEY.

We're here to tell you why.

heavy check mark

Temperature

The leading indicator of asset failure.

heavy check mark

Monitor Temperature Wirelessly

Avoid Costly Failures

Optimize Reliability

Increase Safety

Prevent Downtimes

Not Allowed Sign Illustration
heavy check mark

Stop using

IR Windows

Thermal Imaging

Surface Acoustics

Fibre Optics

System Architecture

Choose

State of the art RFID temperature sensing technology

Zero cross-interference between sensors

Assign unique sensor IDs to prevent false alarms

Virtually unlimited sensors per panel

Ambient and humidity sensors to monitor delta and alarm

Wireless data download through short range encrypted bluetooth

Massive storage of 100 million readings per reader

Custom software for viewing and trending temperature data

Switchgear

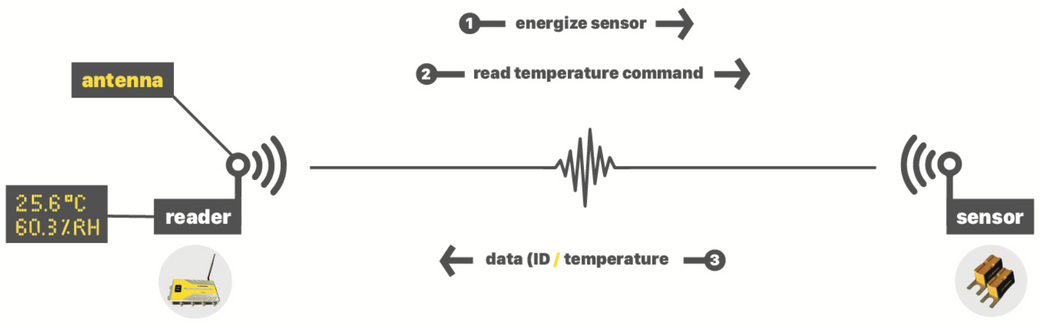

Operating Principle

/.\ deltabee's Smart Passive Sensing technology is wireless and battery-free

Basics

1

The reader continuously passes radio frequency signals that are picked up by the chip. The chip is then energized and produces a current that passes through the diode. The voltage drop produced across the diode depends on the temperature of the surface that the sensor is interfaced with.

2

The variation of the voltage drop is linear to the diode temperature. The analog signal of the voltage drop is then converted to a digital signal which is then transmitted over radio frequency to the reader using the antenna.

3

The sensor will then report the result back to the RF reader concluding the operation. This entire process takes less than 20 MSEC.

Reader and Sensors

/.\ beehive

4 port reader

/.\ AN-01

Antenna

/.\ on-metal

Passive Sensors

Read Range: 200 CM

4 Relay Outputs

RJ-45 / HDMI / RS485 / 4G / WiFi / Bluetooth

Storage: 1,000,000+ records

Rivet hole mounting

Magnet mounting

CoAx cable connection

Various types of sensors are available for various sensing points.
